Opening a New Optical Store? Here’s Your Display Cabinet List

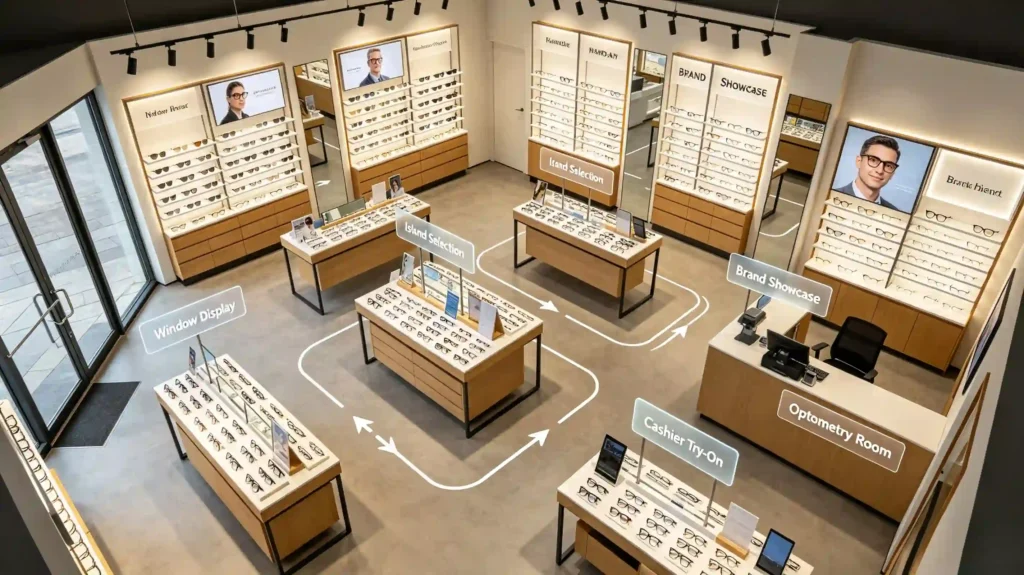

Different Store Sizes – How to Match the Cabinets? Let This Table Make It Clear
Over the years dealing with overseas clients, I’ve found what everyone lacks most is a sense of proportion. This next set of configuration ratios is super accurate for initial budgeting.
| Store Size | Wall Main Cabinet Modules | Island Cabinets | Sunglass Tower | Contact Lens Cabinet | Cashier Module | Accessories Side Cabinet |
|---|---|---|---|---|---|---|
| 30-40 ㎡ | 2-3 | 1 set | 1 | 1 set | 1 set | 1 set |
| 50-70 ㎡ | 3-5 | 2 sets | 1-2 | 1 set | 1 set | 1-2 sets |
| 80-120 ㎡ | 5-8 | 3-4 sets | 2 | 1-2 sets | 1 set (w/ side) | 2+ sets |
This table already factors in the customer flow. For small to medium stores, don’t force extra cabinets in. Leaving a clear walkway of over 1 meter is way more important than displaying 20 extra frames.

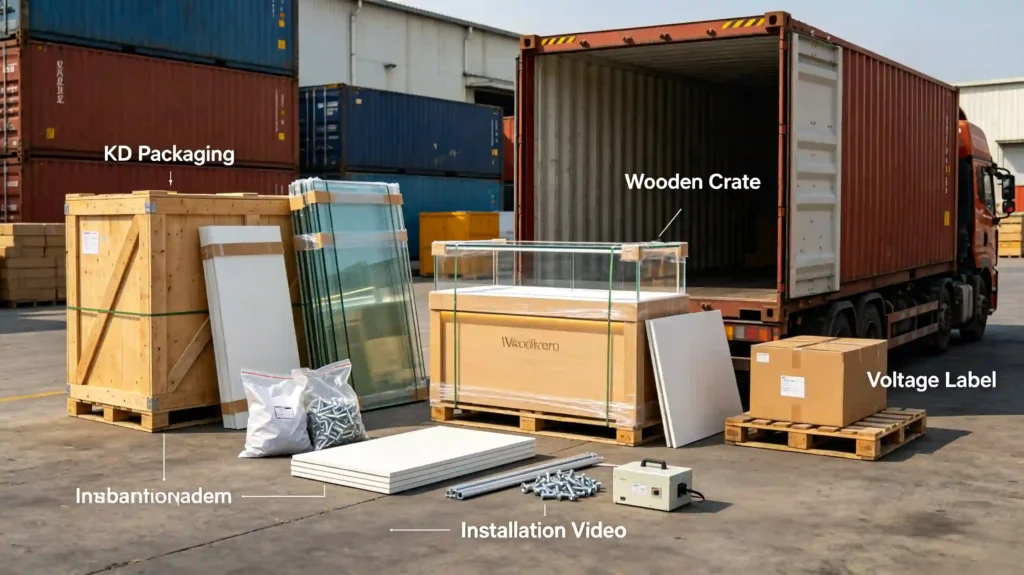

Sourcing from China – How to Avoid Your Shipment Turning into Scrap Metal?
This is where many overseas owners really get burned. The container arrives, you open it, and find cracked panels, lights not working, missing accessories – and the claim process drags on forever. Do these things in advance and you’ll dodge 90% of the headaches.
- Insist on KD (Knock-Down) Packaging
That means each panel gets individually wrapped with bubble wrap and corner protectors, hardware packed in separate sealed bags. Never ship fully assembled. The volume is 3 times that of KD, your sea freight cost explodes, and things are much more likely to get crushed. - Nail Down Voltage and Certifications Early
110V for the US/Canada, 240V for Australia, and plug certifications for the UK. Even if you have a local electrician, make sure the manufacturer fits the correct voltage LED drivers and provides CE, UL, or SAA labels. For every batch we ship, the drivers come pre-installed for the destination country – clients don’t need to modify anything themselves. - Get an Installation Video, Not Just a Diagram
Local workers often can’t make sense of the exploded view drawings. A much better approach now is: have the manufacturer provide a 10-minute unedited installation video showing the whole process from unboxing to a fully assembled cabinet. You save on labor and avoid a ton of after-sales emails. - Crate Glass and Mirrors in Wooden Boxes
Even if it costs a bit more, you must pack glass shelves and mirrors in separate wooden crates. This is especially crucial for LCL (less than container load) shipments. Mixed cargo is where these items are most likely to get crushed. Our experience: once we started crating glass separately, the breakage rate dropped straight from 8% to 0.3%.
A Real Configuration List That Saved a Melbourne Store 30% of Their Budget
Last year, a Chinese client in Melbourne had a new 65 sqm store targeting the mid-to-high-end market. Initially, a local fit-out company quoted them 52,000 AUD just for the cabinets. Then they sent us the floor plan, and we re-worked the list:
- 4 wall main cabinet modules, widened to 1200mm, using walnut grain with matte black metal frames.
- 2 island cabinets, but we cut redundant lightboxes and switched to ceiling spotlights – that alone slashed a big chunk of electrical costs.
- Only 1 sunglass tower, placed in the right display window, since the left side was blocked by the neighboring store – pointless display.
- Combined the contact lens cabinet and cashier module into an L-shaped unit, saving a whole cable run.
- All cabinets KD-packed, shipped in a full container to Melbourne port, arriving in two weeks.
The final cost for the cabinets came to around 36,000 AUD, and installation took just 3 days. The money they saved went into upgrading optometry equipment. In their first month, they averaged 19 transactions a day. The owner himself said: with the right flow, customers naturally complete the whole journey on their own.
5 Overlooked Details When Buying Optical Display Cabinets
Most first-time buyers only judge cabinets by looks and price, then run into operational headaches after installation. Lock in these five details upfront and you’ll avoid most common pitfalls.

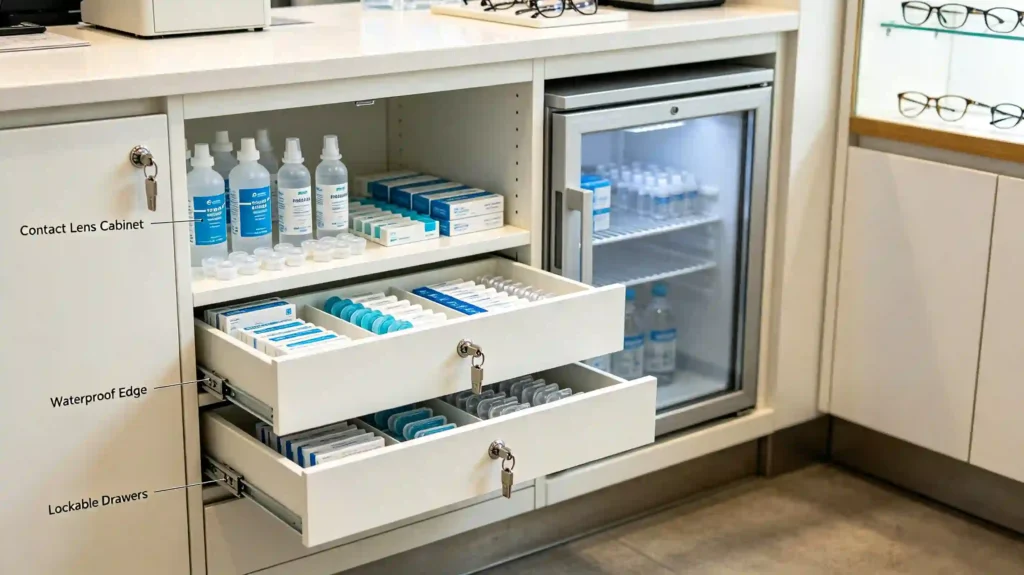

- Go with factory-preinstalled lighting Skip sticking LED strips on yourself after delivery — it looks uneven and falls apart fast. Factory-installed strips are clean and consistent. Always ask about the color rendering index (CRI) too; aim for CRI ≥90 so frame and lens colors show true to life, and customers don’t get an unpleasant surprise after purchase.
- Build security features in from the start Premium display cabinets absolutely need locks. For open island units, try to get pre-drilled mounting spots for magnetic security tags. Don’t wait until you’ve lost stock to add security — drilling holes later ruins the cabinet finish and looks unprofessional.
- Map out walkway widths before you order Main store aisles need to be at least 1.2m wide, and the gap between island cabinets and wall units shouldn’t be less than 0.9m. If walkways are too tight, customers feel crowded when the store is busy, and it drags down the whole shopping experience.
- Clarify after-sales support up front How long is the paint finish under warranty? Can they replace broken glass on-site? How fast do they fix faulty lighting? Display cabinets aren’t a one-and-done purchase. Slow after-sales support means downtime for your store when something breaks.
- Line up production lead times with your renovation schedule Standard ready-made cabinets take 15–20 days to produce. Fully custom designs take 25–35 days. Add shipping and installation time on top of that. Align this timeline with your renovation crew so you’re not sitting on a finished store waiting for cabinets to arrive.
I’ve written a lot, but it all boils down to one thing: display cabinets aren’t furniture – they’re sales tools.
When you’re opening a new store, don’t leave this budget to the last minute. Lock in production 6-8 weeks ahead, coordinate with sea shipping time, and you’ll easily be ready to open with a clear Display Cabinet List in hand.
If you already have a floor plan, go ahead and check it against this list. See what’s missing, what’s extra. Tweak it once, and the return will be much bigger than you think.
